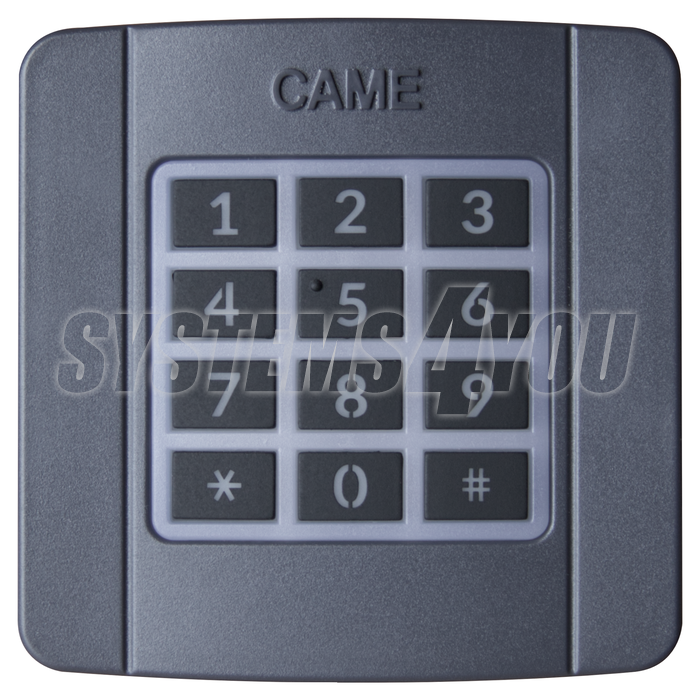

This version of the numeric keypad is designed for recessed mounting or in free standing columns and posts.
This numeric keypad requires additional devices to operate. Follow the description below to avoid compatibility issues. If you have additional questions, please contact us. We will help you choose the right devices.
Control boards compatible with the module R800, R800V2 or interfaces S0001M, S0002M.
If your control panel has a red socket described as R800, you only need to buy the module Came R800. The numeric keypad should be connected directly to the control board.
If your control panel does not have this socket, then you need to purchase the interface Came S0002M. Then the numeric keypad should be connected to the Came S0002M interface, and the interface to the control board.
Control boards compatible with interfaces S0001, S0002, S0004N.
If you have an older control board, you must purchase the Came S0002M or Came S0004N interface to enable work this numeric keypad. Came S0001 and S0002 interfaces are no longer manufactured and have been replaced by the Came S0002M interface.
This numeric keypad is compatible with installations equipped with Came S6000, S7000 and S5000 models of numeric keypads. Please note that this numeric keypad model has slightly larger dimensions (1 mm wider, 4 mm higher). The numeric keypad can be combined in installations with other models of Came wired numeric keypads.
This numeric keypad is compatible with products from other manufacturers. Requires interface Came S0002M or Came S0004N.
| Connection type | Wired |
|---|---|
| Number of supported devices | Depends on the control interface |
| Operating mode | Depends on the control interface |
| Backlit keypad | ✔ |
| Power supply | 12V DC |
| Housing | Plastic |
| Protection rating | IP54 |
| Operating temperature | -20°C ÷ +55°C |
| Dimensions | 71 × 74 × 50 mm |
